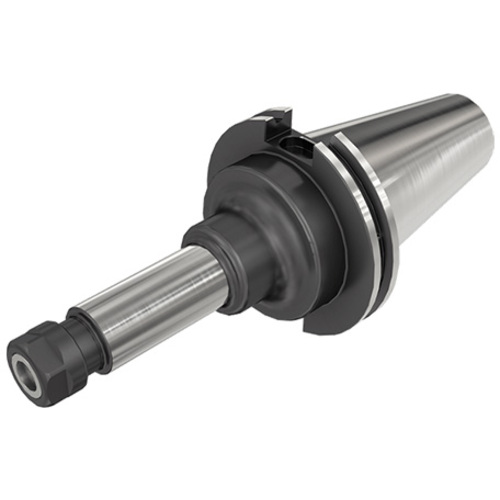

CAT50ER40X8.000
DIN 6499 ER collet chuck holder with Caterpillar form ADB tapered shank.

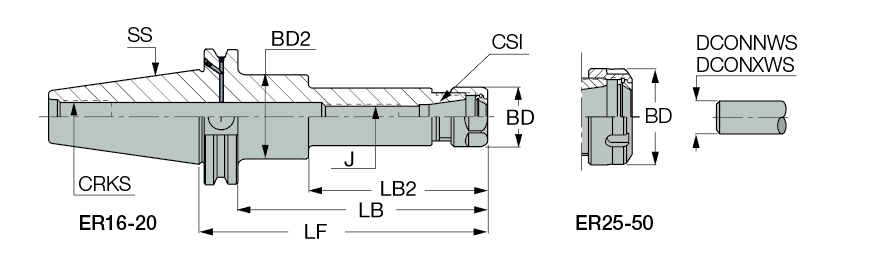

| Shank Size (SS) | CAT50 | Functional Length (LF) | 8″ |
| Connection Size (CSI) | ER40 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 2.48″ | Tool Type | Caterpillar |
| Body Diameter_3 (BD_3) | 2.752″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Body Length (LB) | 7-1/4″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Body Length_2 (LB_2) | 6.58″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER collet chuck holder with Caterpillar form ADB tapered shank. | Country of Origin | TURKEY |
Shipping Info
Package Weight
0.000
