HSKE40ER16X60

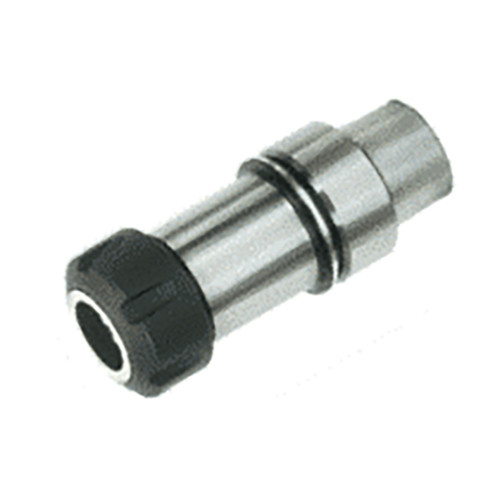

ER collet chucks with HSK-E shank

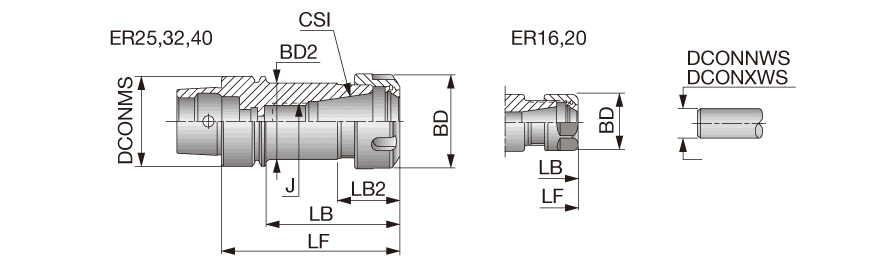

| Shank Size (SS) | HSK E 40 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | HSK |
| Body Diameter (BD) | 1.102″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Length (LB) | 1.575″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Measurement Type | Inch |
| Shank Length (LS) | 0.787″ | Body Material | Steel |
| Functional Length (LF) | 2.362″ |
Product Features
| Family Description | ER collet chucks with HSK-E shank | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.778
