QC12-JSCL2CR09-CHP

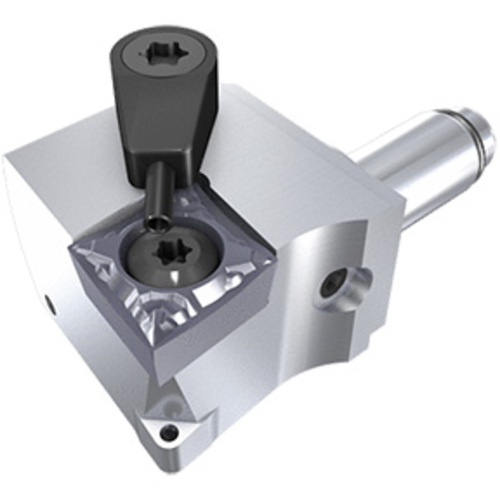

Modular head without offset for ISO 80 deg rhombic inserts, with high pressure coolant capability

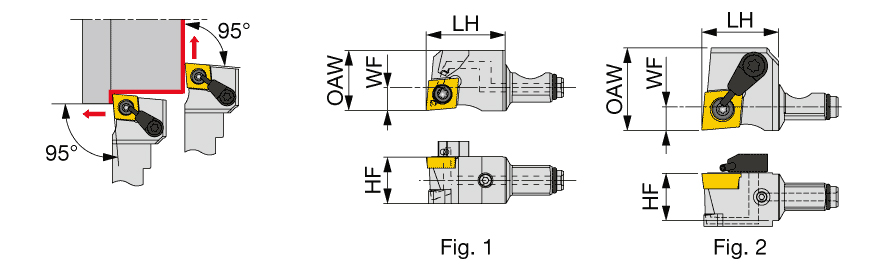

| Shank Height (H) | 0.472″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 0.472″ | Master Insert Identification (MIID) | CCGT32.50.5 |
| Overall Length (OAL) | 1.378″ | Application | | For Miniature machining | |
| Functional Length (LF) | 0.783″ | Body Material | Steel |
| Head Length (LH) | 0.768″ | Measurement Type | Inch |
| Functional Width (WF) | 0.236″ |
Product Features
| Family Description | Modular head without offset for ISO 80 deg rhombic inserts, with high pressure coolant capability | Country of Origin | Japan |
| Remarks | Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. |
