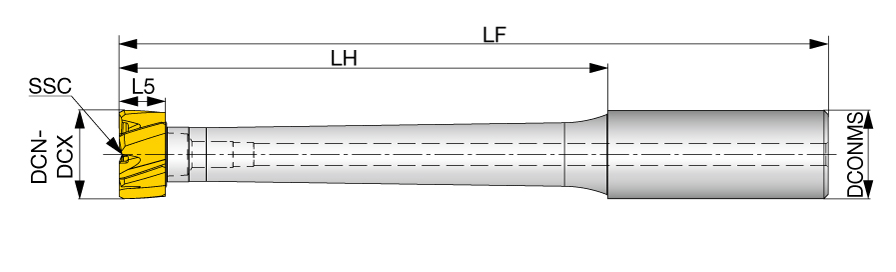

| Connection Diameter Machine Side (DCONMS) | 0.787″ | Length Group | 2xD |
| Application | | Reaming | | Cutting Diameter Minimum (DCN) | 0.6299″ |
| Insert Seat Size Code (SSC) | T7 | Cutting Diameter Maximum (DCX) | 0.7874″ |
| Body Material | Steel | Functional Length (LF) | 3.571″ |
| Measurement Type | Inch | Head Length (LH) | 1.602″ |
Product Features
| Family Description | Indexable reamers for holemaking | Country of Origin | ISRAEL |
| Remarks | Maximum effective reaming depth = Head diameter (mm) x L/D ratio (ULDR). Ex. For a reamer with DC 12 mm: 12 mm × 3 = 36 mm |
