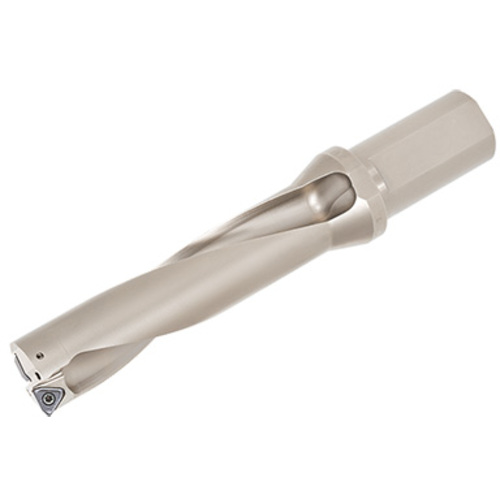

TDSU1750F-4 4XD DRILL
Indexable Insert Drill; 1-3/4″ Dia. × 7.059″ LU × 1-1/2″ Shank Dia. × 11.223″ OAL ; Steel

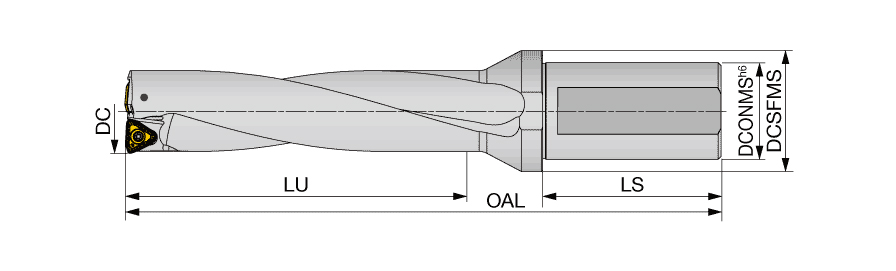

| Cutting Diameter (DC) | 1-3/4″ | Overall Length (OAL) | 11.223″ |
| Usable Length (LU) | 7.059″ | Flange Diameter (DF) | 2.165″ |
| Application | | General Drilling | | Point Length (PL) | 0.059″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | WWMU11X512R-DJ |
| Shank Length (LS) | 2.736″ | Body Material | Steel |
| Functional Length (LF) | 8.428″ | Decimal Equivalent | 1.75″ |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=4, Flat cotter | Country of Origin | Japan |
