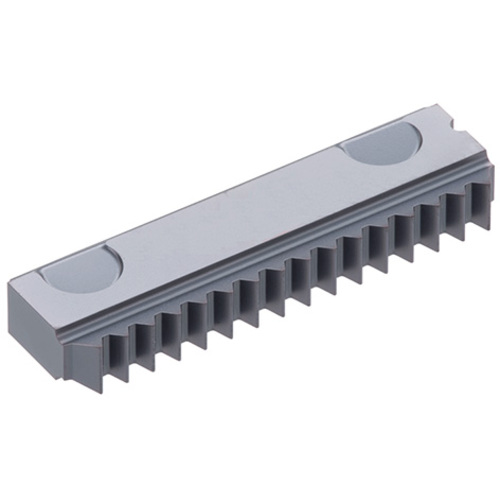

LN25DIR3.0ISO AH725
Internal ISO Metric
| Thread Pitch (TP) | 3 mm | Threads per Inch Maximum (TPIX) | 8.5 Thrd/in |
| Threads per Inch (TPI) | 8.5 Thrd/in | Threads per Inch Minimum (TPIN) | 8.5 Thrd/in |

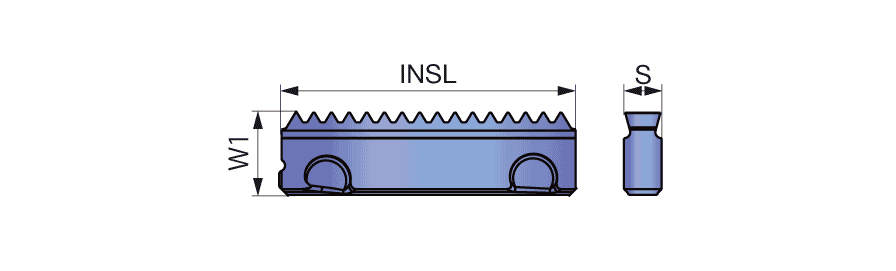

| Insert Length (INSL) | 0.984″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.122″ | Cutting Edge Material | Carbide |
| Application | | Inserts | | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Grade | AH725 | Body Material | Carbide |
Product Features
| Family Description | Internal ISO Metric | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
