| Cutting Diameter (DC) | 2″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 4″ | Tool Type | Single-End |
| Overall Length (OAL) | 6-1/2″ | Length Group | Aluminum Cutting |
| Cutting Edge Material | HSS | Decimal Equivalent | 2″ |
| Coating | Uncoated |
Product Features

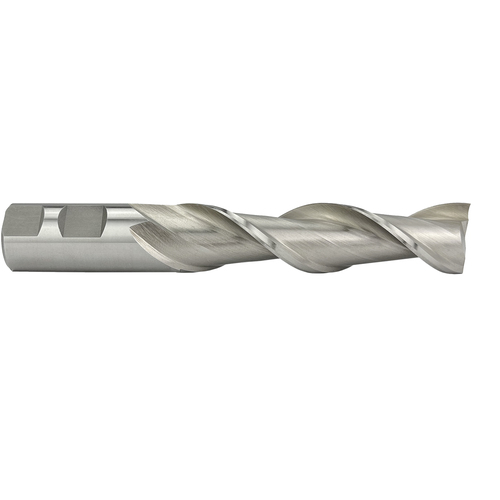

| Remarks | •2-Flute Hi-Helix End Mills for Aluminum •High Speed Steel •Aluminum cutting end mills are designed to cut aluminum and other non-ferrous materials. The 38° helix shears the material cleanly and allows for more of the cutting flutes to be engaged with the workpieces thus eliminating chatter. | Country of Origin | CN |
Shipping Info
Package Length
7.10000
Package Width
2.30000
Package Height
2.30000
Package Weight
3.450
