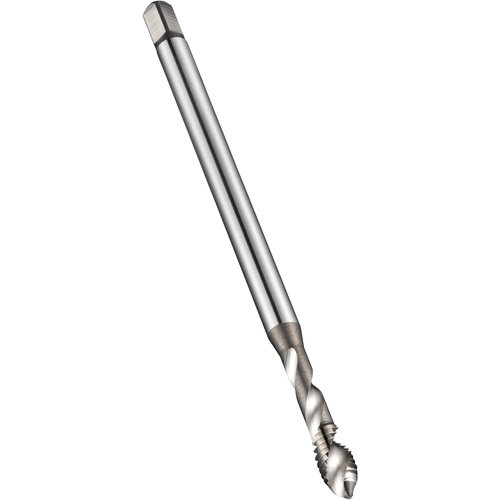

M6x1.0 6H Cobalt Spiral Flute Long Tap-Bright E-code # E605M6
E-code # E605M6
| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1 mm | Tool Type | Machine Tap |
| Thread Standard | M | Coating | Uncoated |
| Overall Length (OAL) | 89 mm | Style | Long |
| Thread Cutting Part Length (THL) | 12 mm | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 29 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 6.3 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Flute Type | Spiral Flute |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | E605 |
| Cutting Edge Material | HSSE-PM | Thread Size | M6 × 1 |
Product Features
| Family Description | E-code # E605M6 | Country of Origin | JP |
Shipping Info
Package Weight
0.8409
